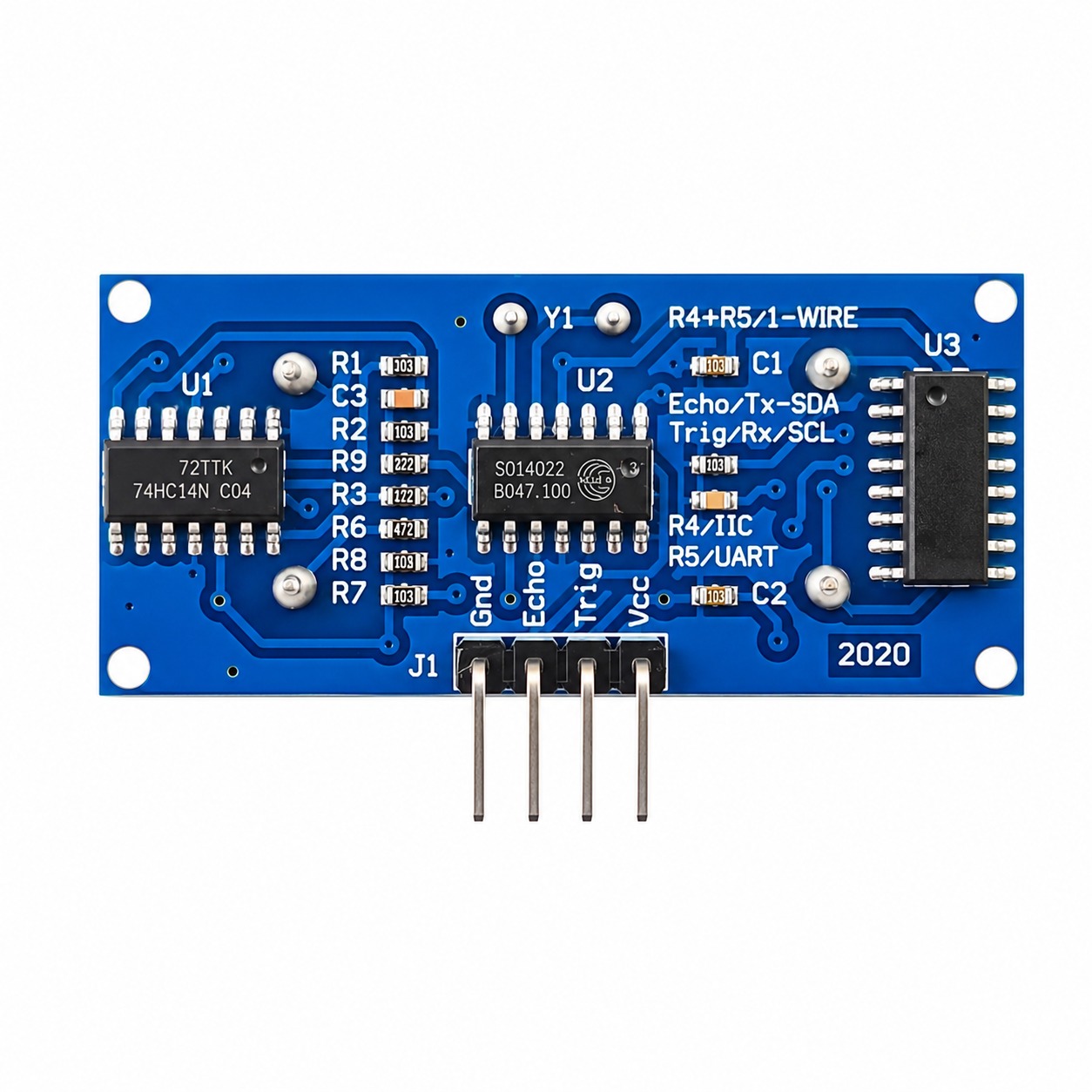

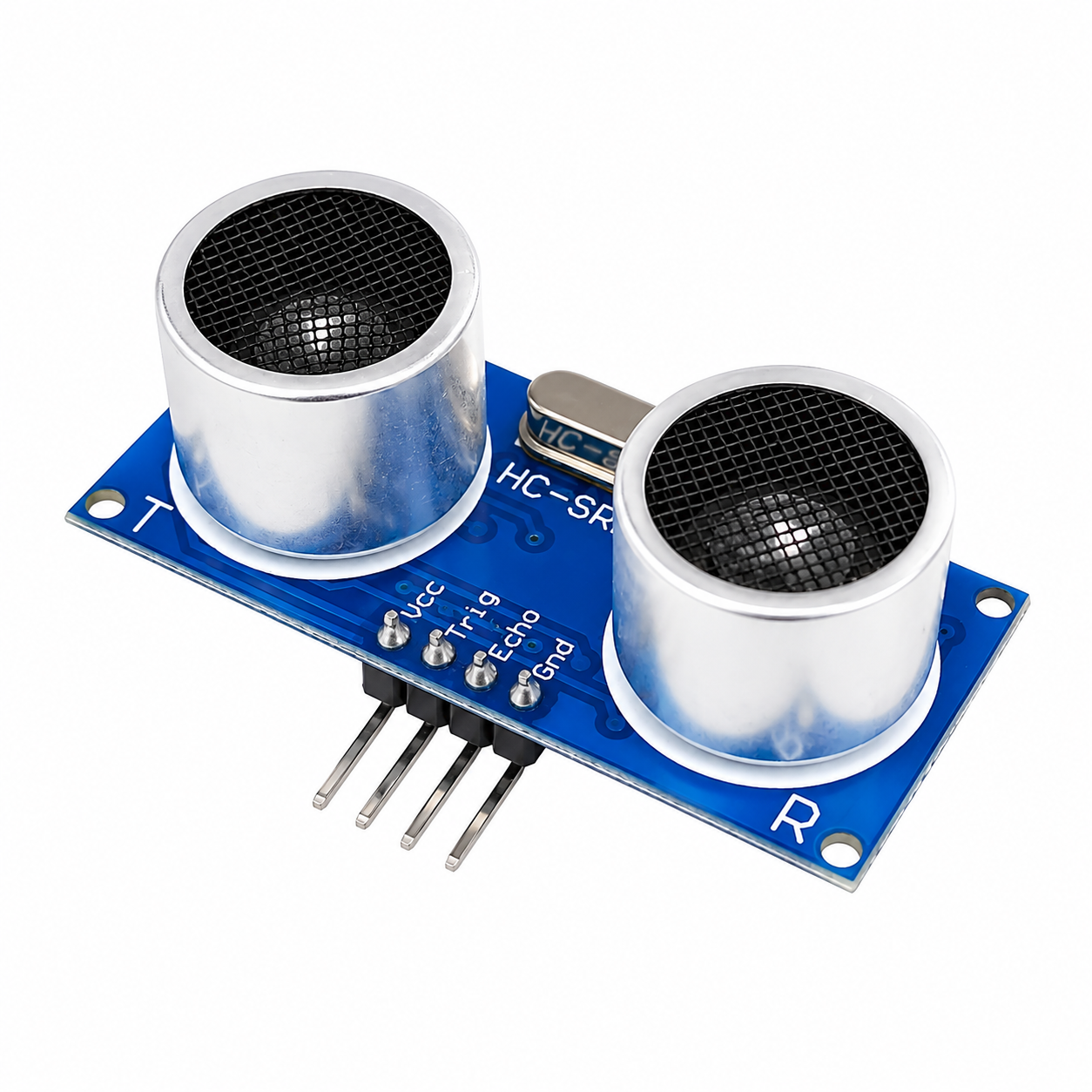

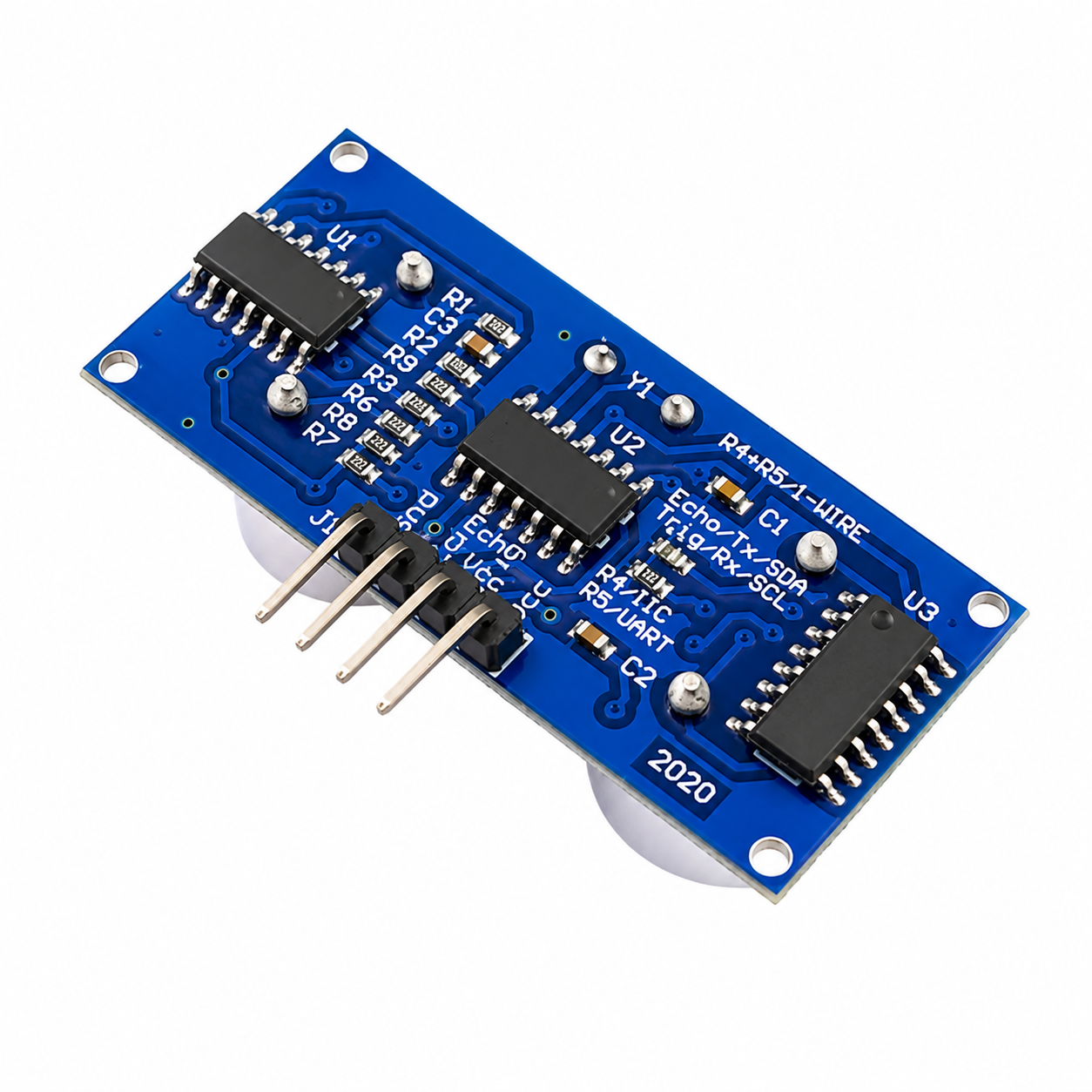

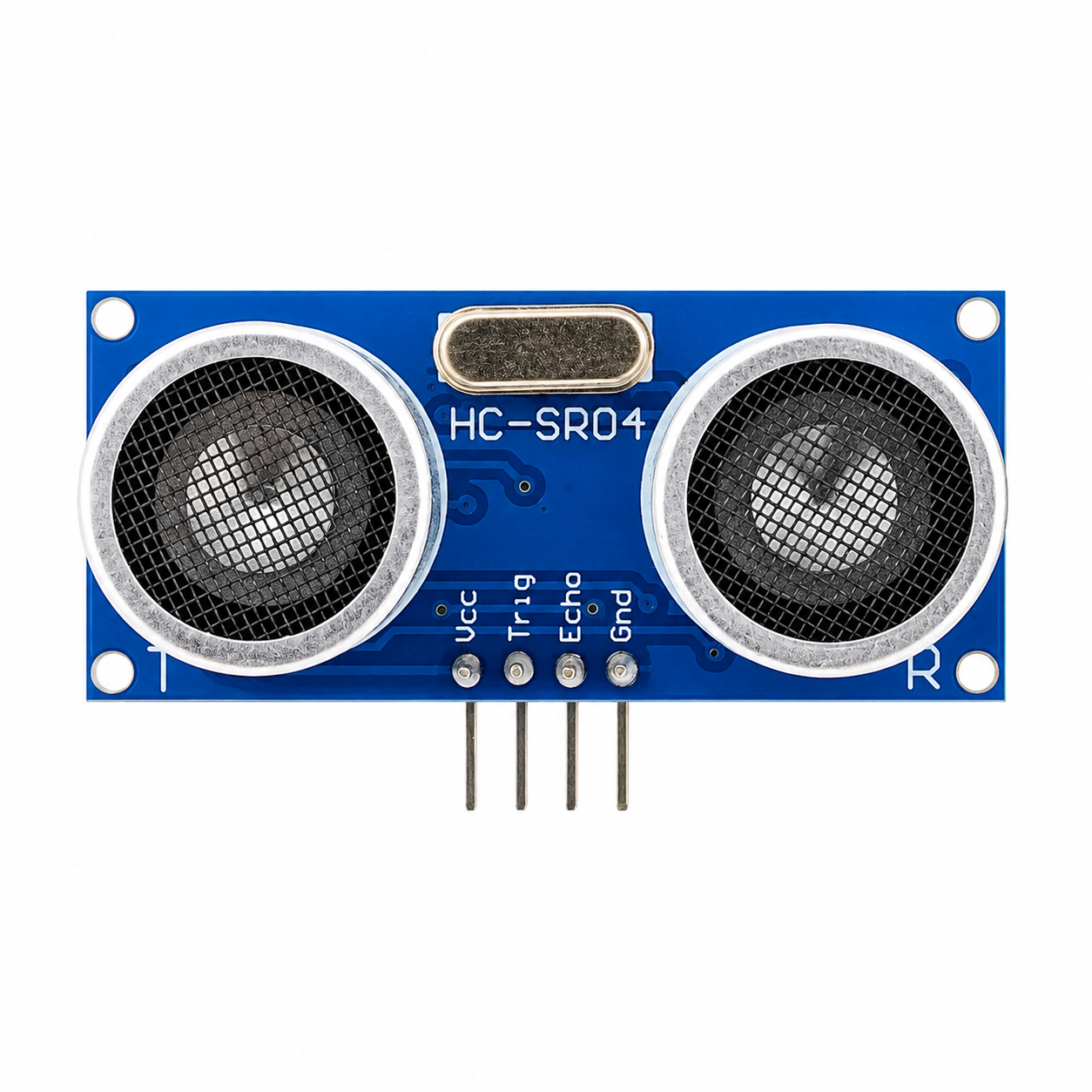

HC-SR04 Ultrasonic Sensor Module
₹89.00
Estimated delivery:5 - 10 days
Shipping
Standard shipping (India) :
● Free shipping on orders above ₹499.
● A shipping fee of ₹99 will be charged on orders below ₹499.
● Estimated delivery time: 6–9 business days.
Same-Day Delivery (Pune & PCMC) :
● Free same-day delivery on orders above ₹299.
● A delivery fee of ₹79 will be charged on orders below ₹299.
● Estimated delivery time: Between 9:00 AM and 6:00 PM on business days.
Return & Refund
At Inneonics, all electronic components are thoroughly tested and quality-checked before dispatch. Due to the sensitive nature of electronic components, returns and exchanges are accepted only under specific circumstances.
Technical Specifications
- Sensor Type: Ultrasonic Distance Sensor
- Operating Voltage: 5V DC
- Detection Range: 2cm – 400cm
- Accuracy: Up to 3mm
- Measuring Angle: 15°
- Interface Pins: VCC, GND, Trig, Echo
- Current Consumption: Low (standby <2mA, working ~15mA)
- Frequency: 40kHz
| Weight | 10 g |
|---|---|
| Dimensions | 4.5 × 2 × 1.5 cm |
